Low Power Dissipation Operational Amplifier MS321/MS358/MS324
PRODUCT DESCRIPTION of MS321/MS358/MS324
The MS321, MS358, MS324 are single channel, dual channel, four channel amplifiers respectively. It has high unit gain bandwidth and the slew rate could be up to 0.4V/μs on specific condition. Each amplifier only has 430μAquiescent current at 5V. The input common-mode range could be grounded. In addition, the device supports single or dual power operation, and easily drive large capacitance load.
The MS321, MS358, MS324 have lead SOT23-5, SOP8, SOP14/TSSOP14 and QFN16 packages respectively. The device is featured by low power dissipation, wide power supply range and economical price, allowing it to be applied widely.
FEATURES of MS321/MS358/MS324
● Gain Bandwidth : 1MHz@25°C
● Low Power Supply Current: 430μA
● Low Input Bias Current: 30nA
● Power Supply Range: 2.5V to 36V
● Maintain Stable in Large Capacitance Load
● SOT23-5 packaging
APPLICATIONS of MS321/MS358/MS324
● Charger
● Power Supply
● Industrial Control Tools
● Desktop Computer
● Communication
PRODUCT SPECIFICATION
Package
| Operating Temperature
| Order model
| Package Marking
| Marking
|
SOT23-5
| -40℃ to 125℃
| MS321
| Tape and Reel 3000 units | 321 XXXX |
SOP8
| -40℃ to 125℃
| MS358 | Tape and Reel 2500 units | MS358 |
SOP14
| -40℃ to 125℃
| MS324
| Tape and Reel 2500 units | MS324
|
TSSOP14
| -40℃ to 125℃
| MS324T
| Tape and Reel 3000 units | MS324T
|
QFN16
| -40℃ 到125℃ | MS324N
| Tape and Reel 4000 units | MS324N |

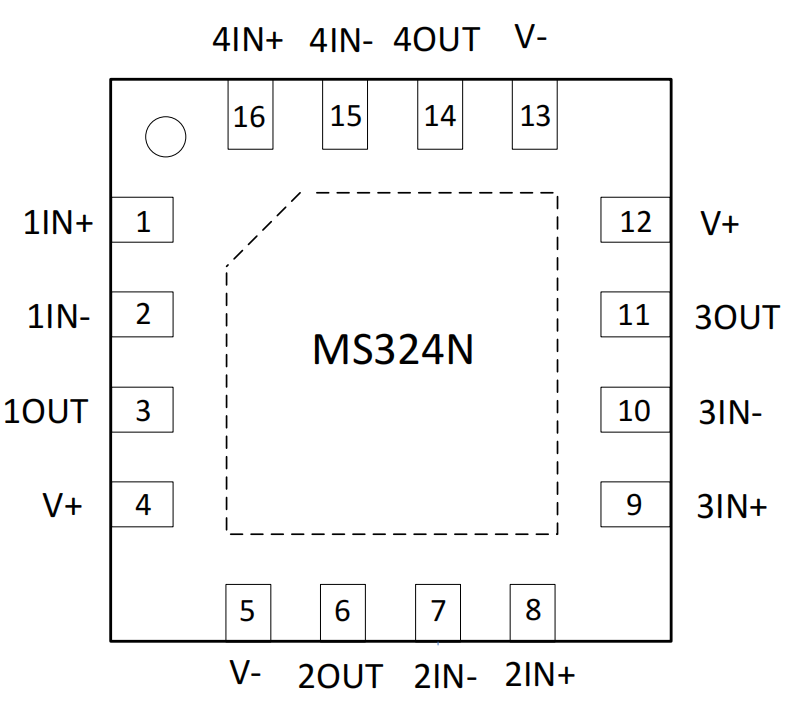

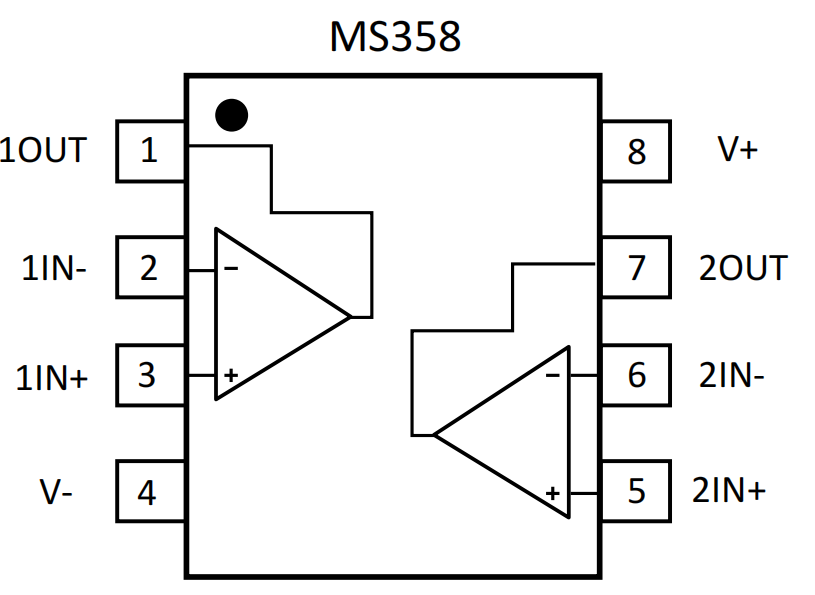

PIN CONFIGURATION of MS321/MS358/MS324
