DongWoon Primary Agent AF Driver IC DW9714V
- Model：
- DW9714V
- Brand：
- DongWoon
- Batch No：
- DW9714V, VCM driver IC, auto focus driver, SAC vibration reduction, 120mA voice coil motor driver,
- Desc：
- DW9714V original DONGWOON VCM AF driver IC with patented SAC™ anti-vibration algorithm, 10-bit DAC, 120mA output, 2.3V~4.3V wide voltage, 1MHz I2C, 6-pin tiny WLCSP package. Pin-to-pin replacement for DW9714A, ideal for smartphone, action camera
- Stock：
- 100000 只
DW9714V Original DONGWOON 120mA Voice Coil Motor Auto Focus Driver IC with SAC™ Anti-Vibration Technology
DW9714V is a new generation linear VCM voice coil motor driver IC released by DONGWOON ANATECH, specially developed for camera module auto-focus systems. It shares fully identical pinout with DW9714A, supporting direct upgrade without PCB redesign. Integrated with high-precision 10-bit DAC, the chip delivers up to 120mA driving current to meet the thrust demand of long-range, high-load telephoto VCM actuators.
Adopting exclusive patented SAC™ intelligent vibration damping algorithm, it significantly reduces mechanical resonance at the start and end of focusing, shortens lens settling time and eliminates motion blur during photo shooting and video recording. It supports low-voltage startup at 2.3V up to 4.3V full battery voltage, perfectly matching portable devices powered by single-cell lithium batteries. The standard I2C serial bus supports maximum 1MHz high-speed communication, integrated POR power-on reset and ultra-low-power PD shutdown mode with standby current below 1μA to extend battery life of portable devices. Housed in ultra-miniature 6-bump WLCSP wafer-level package for compact camera module design.
DW9714V Key Electrical Specifications (Ta=25℃)
| Parameter Description | Symbol | Specification | Unit |
|---|---|---|---|
| Operating Supply Voltage VDD | VDD | 2.3 ~ 4.3 | V |
| I2C IO Input Voltage VIN | VIN | 1.8 ~ VDD | V |
| Max VCM Output Current | IOUT | 120 | mA |
| DAC Resolution | – | 10 | bit |
| Max I2C Clock Frequency | fSCL | 1000 | kHz |
| I2C Slave Address | ADDR | 0x18 | – |
| PD Shutdown Mode Current | IPD | ＜1 | μA |
| Core Featured Functions | – | SAC™ Vibration Reduction Algorithm, POR Power-On Reset | – |
| Package Dimensions | – | 0.77×1.14×0.30 | mm |
Caution: Operating voltage must not exceed the range of 2.3V~4.3V, otherwise chip malfunction or permanent damage may occur. 3.7V lithium battery direct power supply is recommended for battery-powered portable modules.
Pin Definition & WLCSP Bump Layout
6-pin WLCSP wafer-level package bump signals: VDD, SDA, SCL, GND, VP, VM standard definition
Pin Function Description: VDD Main Power Supply of IC; GND Common Ground; SDA/SCL I2C Communication Bus; VP/VM VCM Voice Coil Motor Driving Output Terminals
WLCSP Package Outline Dimension Specification
Overall package size: Length 0.77mm, Width 1.14mm, Ultra-thin thickness only 0.30mm, perfectly suitable for compact camera modules in mobile phones and wearable devices.
Internal Functional Block Diagram & Typical Reference Application Circuit
DW9714V IC Internal Functional Block Diagram
Internal Circuit Modules: I2C communication interface, register control unit, 10-bit DAC digital-to-analog converter, SAC™ vibration reduction control module, current driving output stage, POR power-on reset, low-power PD control circuit

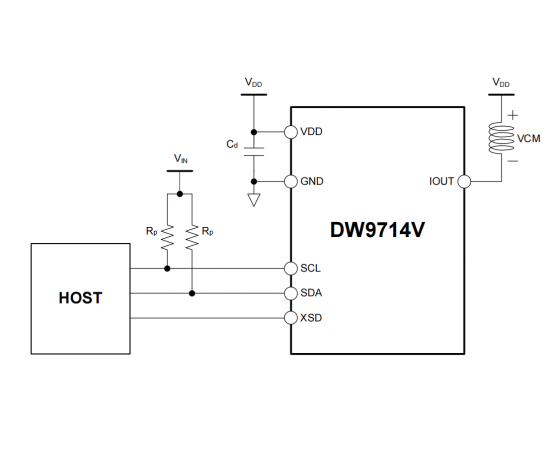

Standard Wiring Scheme for Camera Modules
Connect VDD to 3.7V lithium battery of camera module, GND to system ground; SDA and SCL directly connect to host I2C bus; VP and VM terminals connect to voice coil of VCM actuator; A 0.1μF ceramic decoupling capacitor shall be paralleled at power input to suppress power supply ripple.
Order Part Number & Standard Packaging Specification
| Full Part Number | Package Type | Core Function | Standard Pack Quantity |
|---|---|---|---|
| DW9714V | 6-pin WLCSP | Equipped with SAC™ vibration reduction algorithm, 120mA output | 4000PCS / Tape & Reel |
| DW9714A | 6-pin WLCSP | Normal linear drive without SAC vibration reduction | 4000PCS / Tape & Reel |
| DW9768V | 6-pin WLCSP | SAC™ + On-chip EEPROM parameter storage | 4000PCS / Tape & Reel |
Typical Application Scenarios
Auto-focus modules for front & rear cameras of smartphones
AF drive for digital cameras & portable camcorders
Action cameras, cycling dash cams & drone cameras
Web cameras, live streaming cameras & video conference modules
Wearable devices, kids cameras & small battery-powered imaging equipment
Drop-In Replacement Parts & Competitive Performance Comparison
DW9714V features fully compatible pinout with DW9714A for direct upgrade. Compared with DW9768V and conventional VCM driver ICs in the market, its comprehensive performance advantages are listed below:
| Comparison Item | DW9714V | DW9714A | DW9768V | Conventional Generic VCM Driver IC |
|---|---|---|---|---|
| Core Vibration Reduction Function | Patented SAC™ algorithm to eliminate lens shake | No vibration optimization, easy to generate focus motion blur | SAC™ + EEPROM parameter storage | No vibration suppression, severe mechanical oscillation |
| Max Output Current | 120mA, compatible with high-load VCM | 120mA | 100mA | 80~100mA |
| Operating Voltage Range | 2.3V~4.3V, excellent low voltage compatibility | 2.3V~4.3V | 2.65V~3.3V | 2.6V~3.6V |
| I2C Communication Speed | Up to 1MHz high-speed mode | Only 400kHz | 1MHz | 400kHz |
| PD Standby Power Consumption | ＜1μA ultra-low power draw | 3~5μA | ＜1μA | 5~10μA |
Direct Drop-In Replacement Part Number: DW9714A
FAQ Frequently Asked Technical & Sourcing Questions
Q1: Can DW9714V directly replace DW9714A without PCB modification?
A1: Both ICs share identical package and pin assignment, no PCB redesign required. Only register configuration to enable SAC™ vibration reduction function is needed on software side to achieve faster and more stable focusing performance.
Q2: What is SAC™ mode and what improvements can it bring to image quality?
A2: SAC™ is exclusive patented Smart Actuator Control technology of DONGWOON. It automatically suppresses VCM actuator resonance during focus startup & stop, shortens lens settling time, eliminates motion blur during snapshot and video recording, and improves image clarity under low light and fast moving shooting scenarios.
Q3: The chip supports 2.3V minimum operating voltage, can it be powered directly by single-cell lithium battery?
A3: Fully compatible. Single-cell Li-ion battery ranges from full charge 4.2V to discharge cut-off 2.3V with stable operation, ideal for battery-powered products such as action cameras and wireless cameras.
Q4: If host MCU only supports 400kHz I2C, can it drive DW9714V normally?
A4: The chip backward-compatible with standard 400kHz I2C fast mode. No hardware changes needed for legacy host controllers, communication speed will match automatically.
Q5: Can DW9714V with 120mA output drive long-travel telephoto VCM actuators?
A5: It provides higher current margin compared with regular 100mA driver ICs, suitable for high-load voice coil motors of 5MP~48MP main & telephoto cameras, delivering sufficient driving thrust and stable travel range.
Q6: How to request free samples, datasheets and register documents? Is stock available?
A6: GS-Micro maintains abundant genuine DONGWOON DW9714V inventory. Contact our sales team to apply for free samples, complete original datasheets, I2C register manuals and standard reference schematics.
About GS-Micro Semiconductor
GS-Micro Semiconductor (Shenzhen) Co., Ltd. (Short for GS-Micro) was founded in 2023, evolved from LUMENCHIP established in 2010. Headquartered in Shenzhen, we focus on mixed-signal IC scheme commercialization and serve as a one-stop analog semiconductor supplier.
We provide integrated services including authorized distribution, market forecasting, technical solution support and full-set component supply, combining self-owned brand and overseas original manufacturer authorized product lines. Our full product portfolio covers MCU, AI voice ICs, power management chips, signal chain ICs, VCM AF drivers, Hall effect sensors and power discrete devices.
We hold long-term official authorization from worldwide renowned semiconductor manufacturers including DONGWOON (Korea), CR MICRO, CRHJ, APM, COOLSEMI, OCX, AISPEECH and other domestic & international brands. Genuine product guarantee, stable lead time and professional hardware technical support are provided for all clients.
Adhering to customer-oriented philosophy, we deliver full-chain services including original IC supply, circuit design solutions, sample testing and mass volume supply for imaging, consumer electronics, smart home and IoT manufacturers globally.
DW9714V Sample Request, Bulk Quotation & Hardware Technical Support
Sales Hotline: +86 180 1870 3531 (Contact: Long He)
Business WeChat: gsmicro_semi (Remark: DW9714V VCM Driver Inquiry)
Business Email: sales@gs-micro.com
Service Hours: Mon-Fri 9:00-18:00. Free resources include datasheets, register manuals, PCB layout guidance and project scheme evaluation.
DW9714V Upgraded Traditional AF Driver IC | Mobile Phone Camera VCM Autofocus Chip
DW9714V is a 10-bit resolution 120mA voice coil motor (VCM) autofocus driver chip developed by Korea's Dongwon Technology and promoted by Guangsheng Microelectronics. It incorporates SAC intelligent actuator control technology, which significantly reduces mechanical vibration and enhances focus response speed. It is fully compatible with DW9714A and widely used in devices such as mobile phone cameras, digital cameras, and action cameras. It is the preferred solution for high-precision micro-focus driving.
Product Core Advantages
Equipped with patented SAC™ intelligent actuator control technology, it effectively suppresses mechanical ringing and achieves ultra-fast mechanical stabilization time
10-bit high-precision DAC, 120mA maximum output drive capability, industry-leading current control accuracy
Wide voltage supply range of 2.3V-4.3V, I/O voltage from 1.8V to VDD, compatible with mainstream mobile device power solutions
Supports I2C fast mode and fast enhanced mode, with a maximum clock frequency of 1MHz, ensuring efficient and stable communication
Power consumption in power-down mode is less than 1μA, featuring ultra-low power design to extend device battery life
6-pin WLCSP ultra-small package, with dimensions of 0.77mm×1.14mm×0.30mm, compatible with compact camera modules
Key Parameter Table
| Parameter Name | Parameter value | Unit |
|---|---|---|
| Supply voltage VDD | 2.3~4.3 | V |
| I/O voltage VIN | 1.8~VDD | V |
| Output current | Maximum 120 | mA |
| Resolution | 10 | Bit |
| I2C clock frequency | Up to 1000 | kHz |
| Power-down mode current | ＜1 | μA |
| Operating temperature | -40~85 | ℃ |
| Packaging form | 6-pin WLCSP | - |

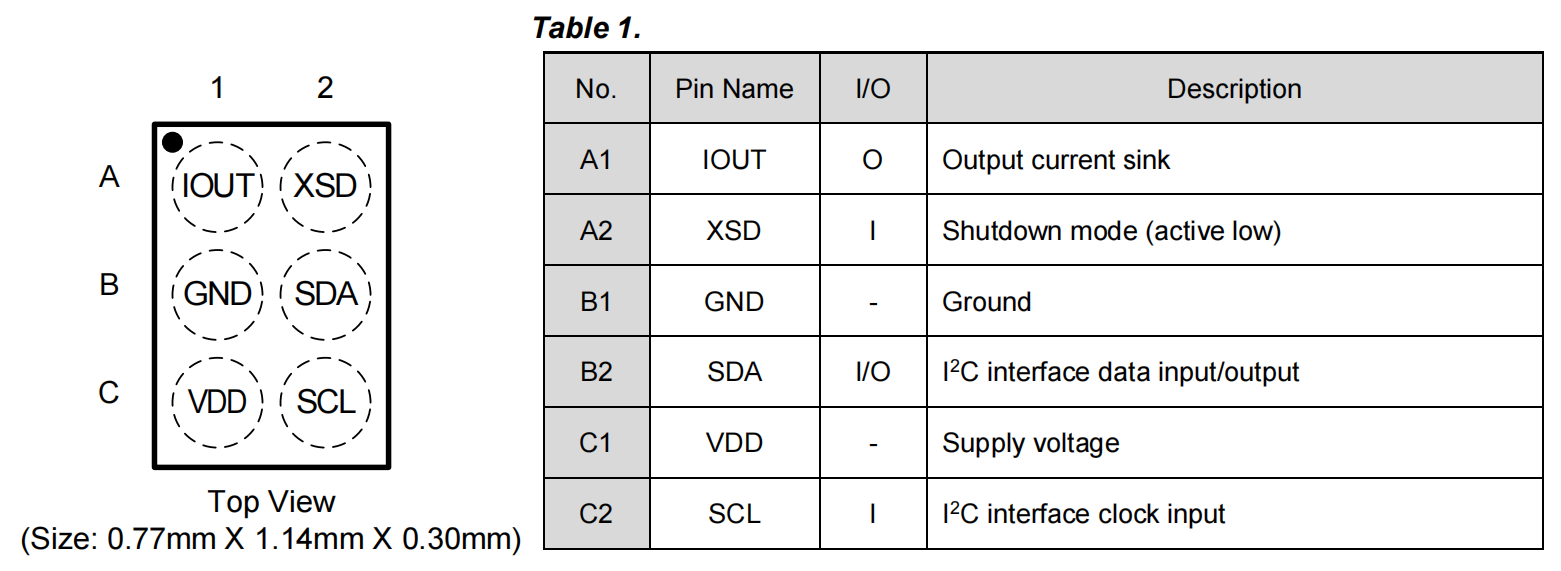

Pin Definition
| Pin number | Pin Name | Type | Function Description |
|---|---|---|---|
| A1 | IOUT | Output | Current sink output |
| A2 | XSD | Input | Off mode (active low) |
| B1 | GND | ground | Power ground |
| B2 | SDA | Input/Output | I2C data interface |
| C1 | VDD | Power supply | Power supply |
| C2 | SCL | Input | I2C clock interface |
Package Size Diagram
DW9714V 6引脚WLCSP封装尺寸俯视图/侧视图/底视图
封装类型：6引脚WLCSP
Outline dimensions: 0.77mm±0.030mm × 1.14mm±0.030mm × 0.30mm±0.041mm
The spacing and size of solder balls meet the high-density assembly requirements of micro-modules, and are compatible with the ultra-thin camera structure of mobile phones

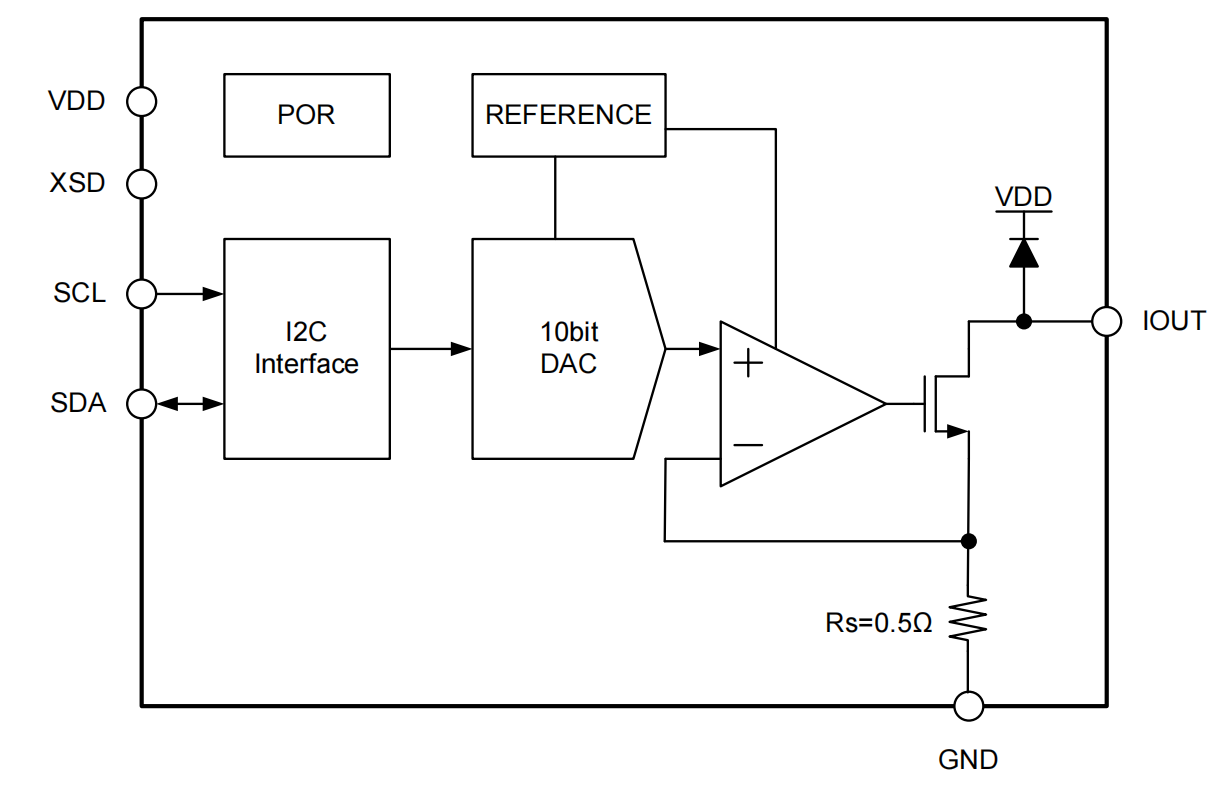

Chip Internal Framework Diagram
DW9714V内部功能框图
The DW9714V integrates an on-chip power-on reset (POR), a reference voltage source, a 10-bit digital-to-analog converter (DAC), an I2C interface module, a SAC intelligent control module, and a power drive output stage. Its overall architecture is streamlined and efficient, enabling linear drive control of the voice coil motor (VCM) without requiring external complex components.

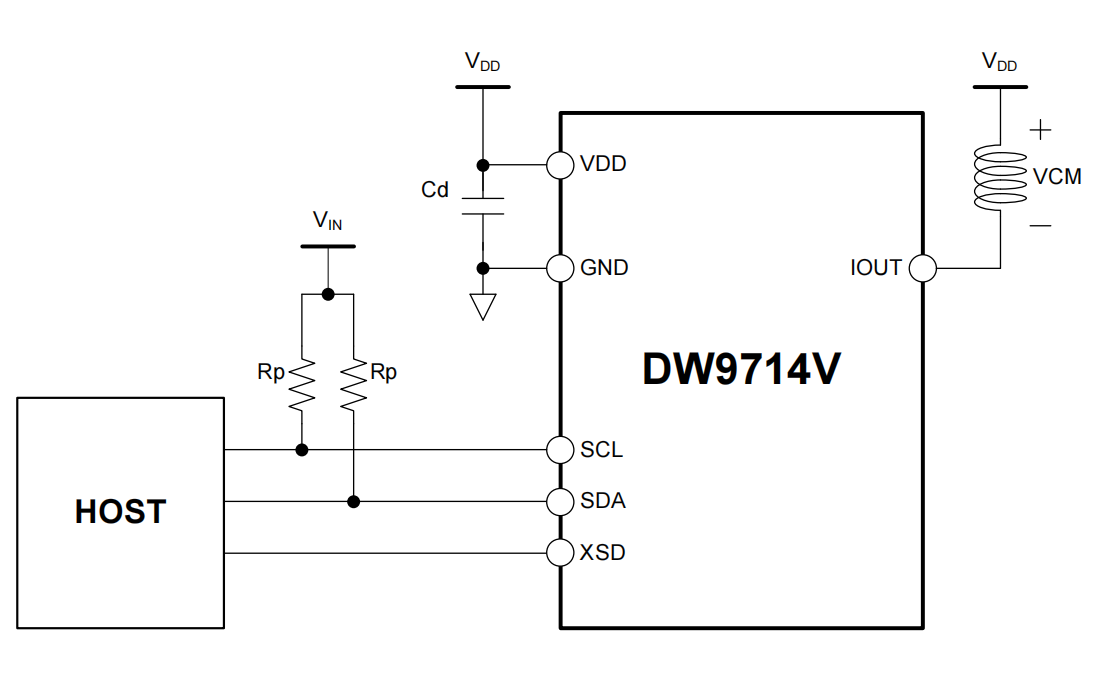

Typical Application Circuit Diagram
DW9714V典型应用电路原理图
VDD连接供电电源，GND接地，IOUT连接VCM音圈电机
SDA、SCL分别接主机I2C数据与时钟引脚，串联1.2kΩ~4.7kΩ限流电阻
XSD引脚应接主机GPIO或直接接VDD，禁止悬空
在VDD与GND之间就近放置一个≥1μF的去耦电容，以确保供电稳定应用场景
Mobile phone front/rear camera autofocus
数码相机、单反相机镜头驱动
便携式摄像机、运动相机
网络摄像头、安防监控摄像头
兼容替换与优势对比
可直接兼容替换市场主流DW9714A芯片，无需修改PCB与软件
Compared to similar products, it features the newly added SAC™ intelligent anti-shake control, with a mechanical ringing suppression capability improved by over 60%
The output current boasts higher accuracy, with linearity of INL±4LSB and DNL±1LSB, ensuring smoother and jitter-free focusing
Lower power consumption during power-down, smaller package size, and compatibility with thinner and lighter terminal devices
使用方法
After power-on, wait for a startup time of 1ms, and then write control instructions through the I2C interface
支持直接驱动、线性斜率控制LSC、双电平控制DLC三种驱动模式
Advanced mode supports SAC2/SAC3/SAC3.5 multi-level intelligent control, adapting to different VCM characteristics
Supports NRC noise reduction control, reduces VCM operating noise, and enhances user experience
